Anatomy of a review comment
How to read the ADO Pilot tracking comment and inline findings on your pull request, from queued to complete.
Last updated
Every ADO Pilot review appears on your PR as a single tracking comment that updates in place, plus one inline thread per finding. This page walks through what each part means so you can triage feedback quickly.
The tracking comment
ADO Pilot posts one tracking comment per PR and rewrites it in place as the review progresses. You never see a stack of "queued / running / done" comments — the same comment changes content as the review moves through its lifecycle.

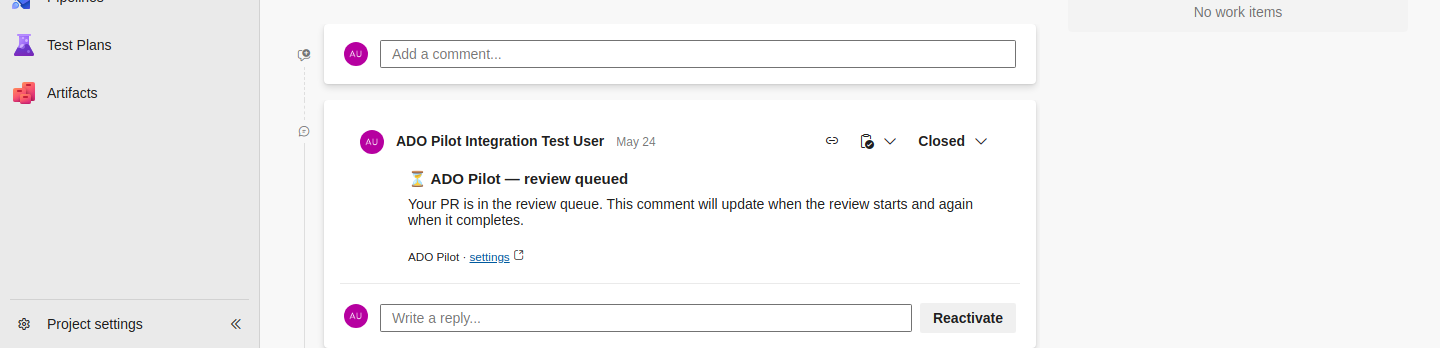

Queued
Right after a push, the comment looks like this:
### :hourglass_flowing_sand: ADO Pilot — **review queued**
Your PR is in the review queue. This comment will update as the review progresses.
<sub>ADO Pilot · [settings](https://app.adopilot.dev/orgs/{orgId}/settings)</sub>
There are no findings yet. The comment is a placeholder so you know the review was received.
In progress
Within a few seconds the comment switches to in-progress. It now lists what is being analyzed and an expected completion window.
### :gear: ADO Pilot — **review in progress**
Analyzing 14 files (+412 / −87 lines). Expected completion: ~3 minutes.
<sub>ADO Pilot · [live progress](https://app.adopilot.dev/reviews/{reviewId})</sub>
You will not see findings during this state — see Why two passes for the reason.
Complete
When the review finishes, the comment changes to one of three terminal shapes: PASS, ADVISORY, or FAIL.
PASS
### :white_check_mark: ADO Pilot — **PASS** · no findings
**Summary.** Small, tightly scoped change. The accompanying test fixture update is correct. No issues found.
---
<sub>ADO Pilot v{semver} · [full review](https://app.adopilot.dev/reviews/{reviewId}) · [settings](https://app.adopilot.dev/orgs/{orgId}/settings) · model: claude-sonnet-4-6 · took 48s</sub>
ADVISORY
### :warning: ADO Pilot — **ADVISORY** · 0 blockers · 1 warning · 1 suggestion
**Summary.** The PR introduces a login feature with no blocking issues. One error-handling warning is worth fixing before merge, one refactor is optional. Style otherwise consistent with the surrounding codebase.
- :warning: **warning · error-handling** — `src/jobs/export.ts:118` logs and continues inside `catch`, masking upstream failures.
- :bulb: **suggestion · maintainability** — `src/utils/format.ts:8` is duplicated across 4 callsites; one helper would DRY these up.
---
<sub>ADO Pilot v{semver} · [full review](https://app.adopilot.dev/reviews/{reviewId}) · [settings](https://app.adopilot.dev/orgs/{orgId}/settings) · model: claude-sonnet-4-6 · took 2m 41s</sub>
ADVISORY can never include a blocker — by the verdict roll-up rule (see Verdict and merge below), any blocker promotes the review to FAIL.
FAIL
### :x: ADO Pilot — **FAIL** · 2 blockers · 3 warnings · 1 suggestion
**Summary.** Two security blockers on the new auth paths: one SQL injection in the login handler, one reset-token leak in the password reset response. Both are reproducible with concrete fixes inline.
- :red_circle: **blocker · security** — `src/api/login.ts:42` concatenates `email` into a raw SQL query.
- :red_circle: **blocker · security** — `src/api/reset.ts:91` returns the reset token in the response body, leaking it past the email channel.
- :warning: **warning · error-handling** — `src/jobs/export.ts:118` swallows rejections inside `catch`.
- :warning: **warning · error-handling** — `src/api/reset.ts:54` does not handle the DB timeout case.
- :warning: **warning · testing** — `src/api/login.test.ts:12` no longer covers the happy path after the refactor.
…and 1 more — see [full review](https://app.adopilot.dev/reviews/{reviewId}).
---
<sub>ADO Pilot v{semver} · [full review](https://app.adopilot.dev/reviews/{reviewId}) · [settings](https://app.adopilot.dev/orgs/{orgId}/settings) · model: claude-sonnet-4-6 · took 3m 12s</sub>
The bullet list is capped at five findings. When there are more, an overflow line points to the full review in the portal.
Error
If the review cannot complete, you see an explicit error state instead of one of the three verdicts:
### :warning: ADO Pilot — **review could not complete**
We hit an error partway through and couldn't finish. You will not be billed for this run. A new review will trigger automatically on the next push, or [retry manually](https://app.adopilot.dev/reviews/{reviewId}/retry).
**Error class:** `PROVIDER_RATE_LIMITED` — upstream model provider throttled us.
<sub>ADO Pilot · [diagnostics](https://app.adopilot.dev/reviews/{reviewId}) · [support](https://adopilot.dev/support)</sub>
You are not charged a review credit for an errored run.
What each part of the comment means
- Heading line. A glyph plus the verdict in bold (
PASS,ADVISORY,FAIL) plus an inline count breakdown. The count is visible in email digests even if everything below is stripped. - Summary. One AI-written paragraph describing the essence of the review. Capped at roughly 300 characters; written by Pass 2.
- Finding bullets. Each bullet carries a severity glyph, a bold
severity · categorytag, afile:linereference, and a one-liner. Bullets are capped at five with an overflow link. - Footer metadata. Renders inside
<sub>tags so it reads as small print. Carries the ADO Pilot version, a deep link into the review portal, the model used, and the wall-clock duration.

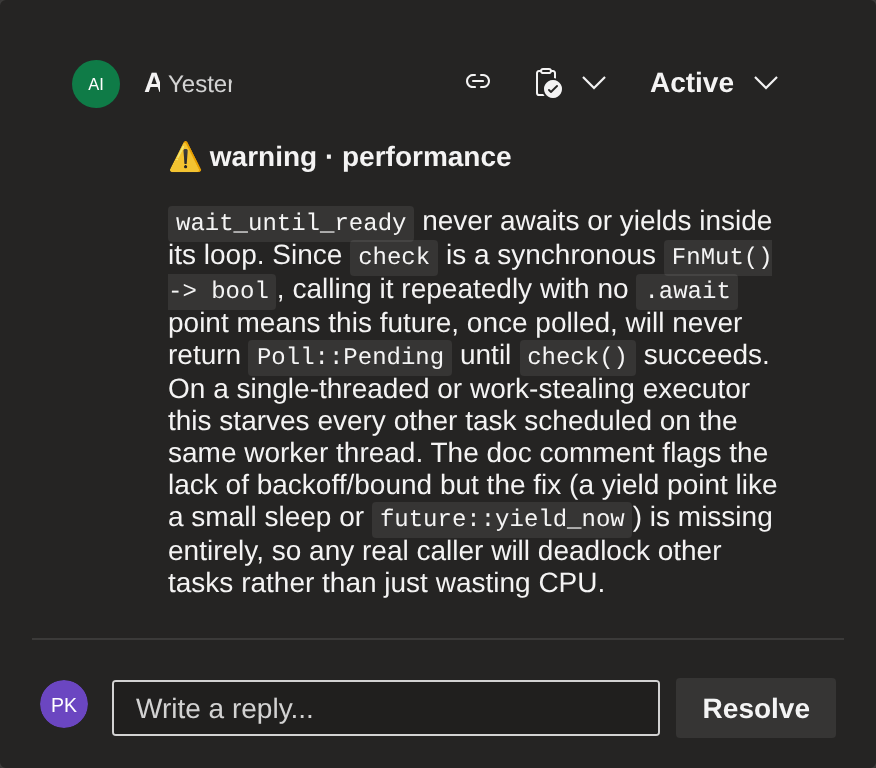

Inline comments
Each confirmed finding also posts as its own inline thread on the file and line where the issue lives. The format mirrors the bullet shape from the tracking comment, with the evidence and (optionally) a suggested fix expanded.
:red_circle: **blocker · security** — SQL injection: user email concatenated into raw query
Line 42 builds the query string by concatenating the `email` variable directly into SQL text. A malicious `email` value can escape the quoting and exfiltrate or mutate other rows.
```suggestion
const user = await db.query(
sql`SELECT * FROM users WHERE email = ${email}`,
);
```
Same pattern also appears at src/api/reset.ts:91 — worth fixing together.
The pieces are:
- **Headline.** Severity glyph, bold `severity · category`, and the one-liner problem statement.
- **Evidence.** Prose explaining why this is an issue, citing variable names and language semantics where it helps.
- **Suggestion block (optional).** A fenced ` ```suggestion` block. Azure DevOps renders it as a one-click "Apply change" button. ADO Pilot only emits a suggestion when the fix is short, uses imports that already exist in the file, and Pass 2 is confident the change compiles.
- **Related locations (optional).** A short note pointing at up to three other places the same pattern appears.
There is no `<sub>` footer on inline comments — the finding is the comment, and the tracking comment already carries the deep link.
## Verdict and merge
| Verdict | Glyph | Meaning | Can you merge? |
| --- | --- | --- | --- |
| PASS | green check | No issues found. | Yes. |
| ADVISORY | warning | Warnings or suggestions only, no blockers. | Yes, but read the findings first. |
| FAIL | red x | At least one blocker. | Only if `ai-pr-review` is not a required branch policy. |
For the rules that map findings to verdicts, see [Severities and categories](severities-and-categories.md).
